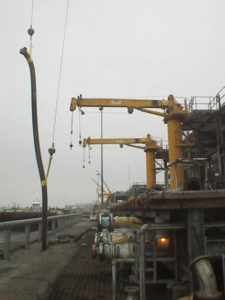

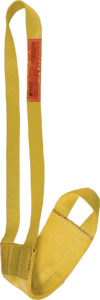

hose-handling-slingThe hose handling sling is used in the handling of hoses and is designed to prevent crushing, kinking and cutting of hoses by evenly distributing the load over the width of the sling webbing

Features:

  • Heavy duty 9800 lb. webbing with UV inhibitors

  • Orange vinyl tag with clear vinyl cover to protect data

  • Specifically designed to handle hoses

  • 3-6 % Stretch with polyester

  • Proof testing available upon request

  • Design factor of 5 to 1

Hose
Diameter		 Polyester
Model		 Sling
Width		 Sling
Length		 Choker
Rated Capacity
(lbs.)
4" HH1-94P 4" 3'6" 2,600
6" HH1-96P 6" 4'6" 5,100
8" HH1-98P 8" 6' 5,800
10" HH1-910P 10" 9' 7,700
12" HH1-912P 12" 11' 7,700

Note:
• Hose handling slings are designed to be used in choker hitch only
• Polyester Webbing standard, unless otherwise requested
